BPL 12-channel ECG Machine Cardiart 9108 with 03 Year Warranty
Sale price
₹127,000
MRP
Regular price
₹165,000
You save ₹38,000 (23%)
Skip to product information
BPL 12-channel ECG Machine Cardiart 9108 with 03 Year Warranty
Sale price
₹127,000
MRP
Regular price
₹165,000
You save ₹38,000 (23%)
Inclusive of all taxes (GST).
Shipping calculated at checkout.
Free deliveryOn orders above ₹500
Full warranty supportWe help with manufacturer warranty claims
GST invoiceWith every order
Secure paymentUPI, cards and net banking
Description & specifications

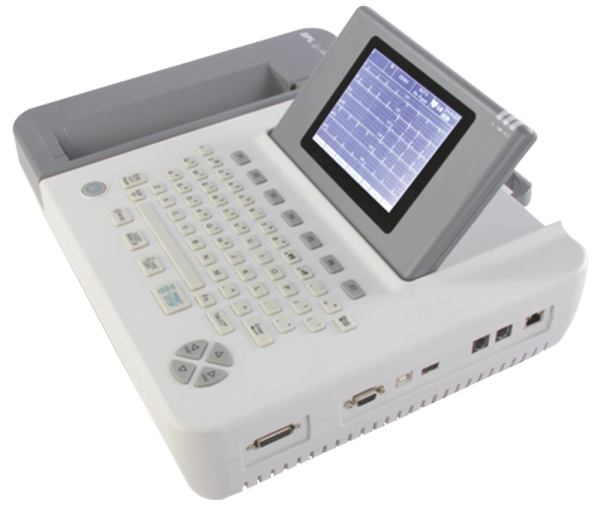

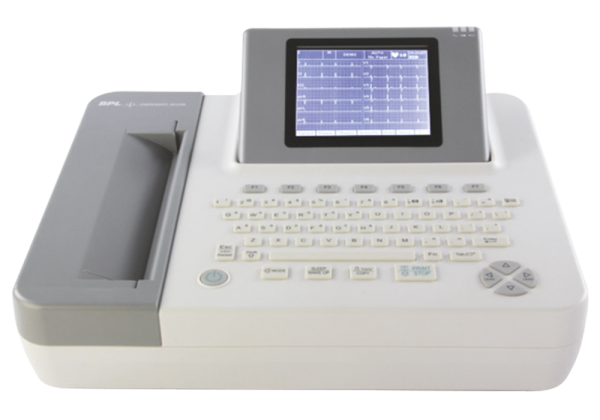

Cardiart 9108 is a 12-channel ECG recorder with built-in ECG parameters measurement and interpretation. With QWERTY keyboard and 5.7 inch high-resolution foldable display, this device is easy to use, supports external USB printer, as well as multi-format reports export.
Features
- 12-channel ECG recording
- 5.7-inch foldable LCD display
- Automatic parameter measurement and interpretation
- 24-bit A/D converter, 0.01 - 300 Hz bandwidth, 16000 Hz sampling frequency
- Internal storage of upto 800 ECGs that can be enlarged by USB
- Built-in rechargeable Li-ion battery
- Report formats: PDF and optional SCP/FDA-XML/DICOM data export
- Connectivity: FTP, supports barcode scanner & USB printer,
- Optional Wi-Fi Optional PC interface software allows to access EMR/PACs/GDT-based systems (HL7 protocol)
Product Specifications of BPL Cardiart 9108 ECG Machine
| Specification | Details |
|---|---|
| Display | 5.7-inch single color LCD Display Foldable |
| Weight | Approx.5.0kg (11.0 lbs)(Excluding recorder paper and battery) |
| Dimension | 420mmx330mm x105mm |
| Communication Interface | Ethernet, RS232, USB |
| Power Supply | 100V-240VAC, 50Hz/60Hz |
| Battery | Built-In Rechargeable 14.8V, Li-Ion Battery, 2500 mAh |
| Leads | 12 standard leads |
| Acquisition Mode | Simultaneously 12 leads |
| A/D | 24 bits |
| Internal ECG Storage | Up to 800 ECG recordings |
| Manufactured By | BPL Medical Technologies Pvt Ltd |
| Warranty | 03 Years |
