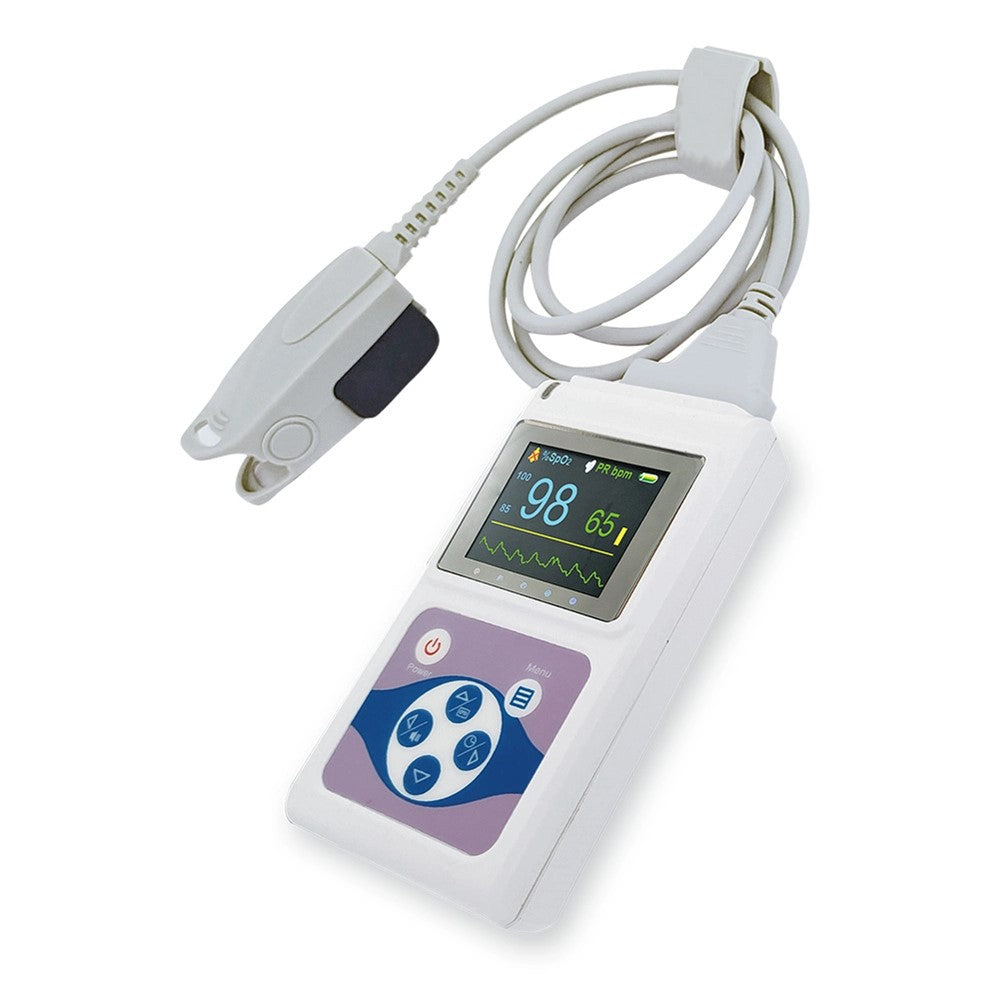

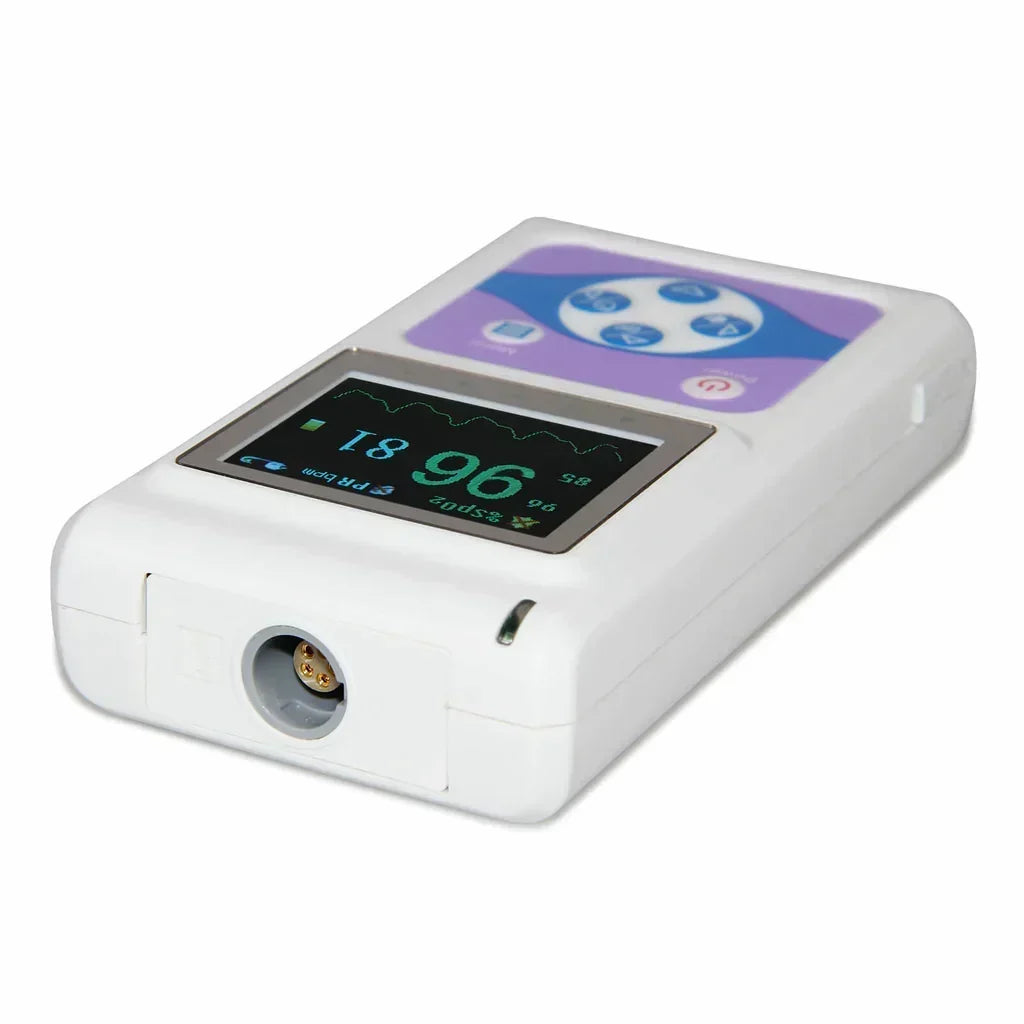

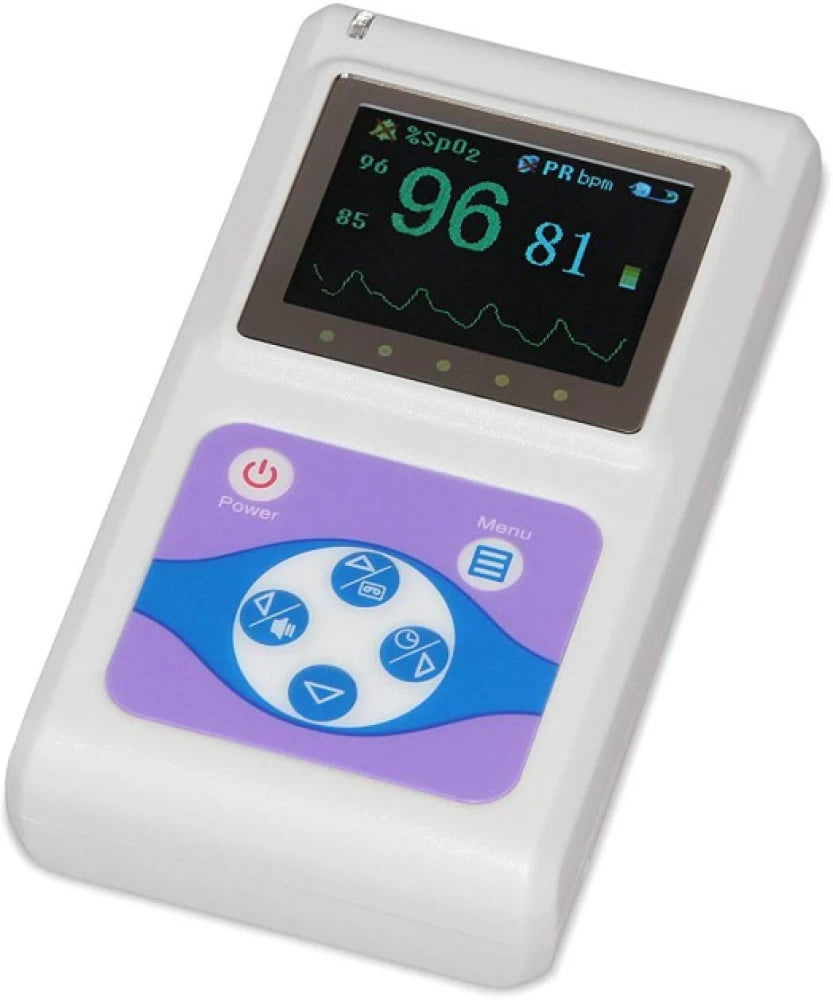

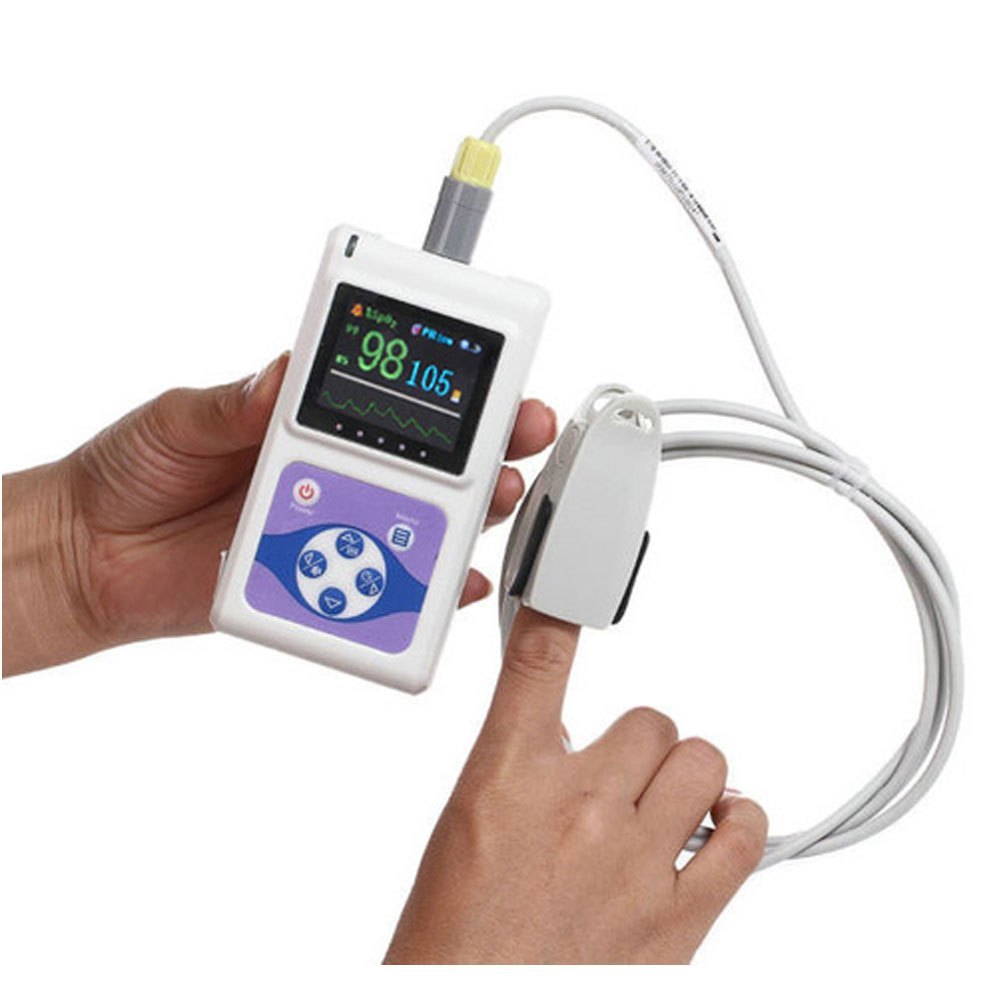

Contec Handheld Pulse Oximeter CMS60D

Product Specifications

• Routine Check Mode and Continuous Monitoring Mode
• Sync with PC based Software (Win XP and Win Vista)
• Display:1.8" Color TFT
• Resolution:160x96
• Display Mode: Display Direction adjustable
• Indicator: Power indicator, Alarm sound, Pulse tone
• Interface: Socket for connecting SPO2 sensors and Socket for communication cables
• Power Supply: 2 AA Size Batteries DC 3V, <60MA
• Record: Data can be recorded up to 24 hours
• Alarm: Adjustable High and Low limits.

Technical specifications:

SPO2:

• 1.8" Color TFT Display
• Measurement Range:0 ~ 100%
• Resolution:1%
• Accuracy:(+/-)2%(70%-100%, Adult/Pediatric, non- motion) (+/-)3%(70%-100%, Neonate, non-motion) 0% - 69% unspecified
• Alarm Range:0% - 100%
• Refreshing Rate:1s

Pulse Rate:

• Measurement Range:25 ~ 250 bpm
• Resolution:1bpm
• Accuracy:(+/-)3 bpm (non-motion)
• Alarm Range:25 - 250 bmp
• Refreshing Rate:1s

Safety:

• Meets the requirement of IEC60601 series
• Type of Protection:Class II with internal electric power supply
• Degree of Protection:BF

Dimension and Weight

• Dimension:92(W)x82(H)x22(D)mm
• Weight:136g(with battery)
• Operation Environment:
• Temperature:0C - +40C
• Humidity:15% - 95%

Storage Environment:

• Temperature:-20C - +60C
• Humidity:10% - 95%

Patient Range:

• Neonate,Pediatric and Adult
