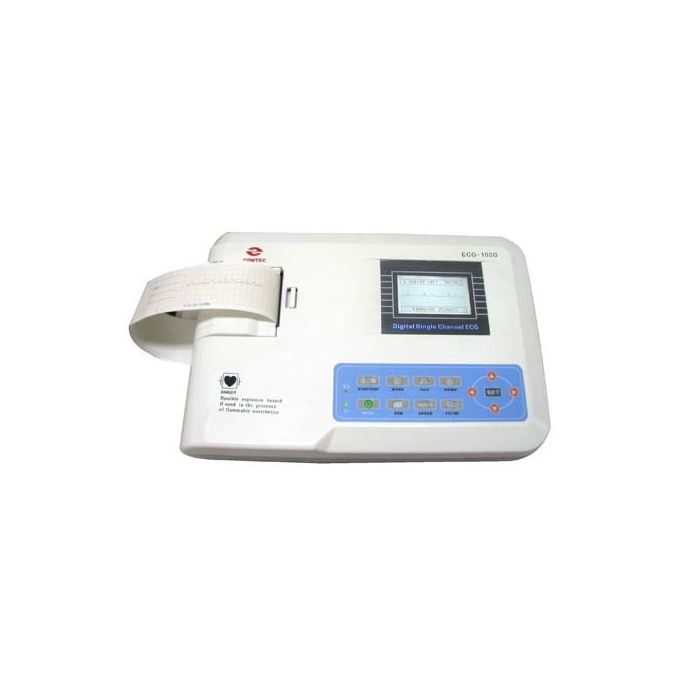

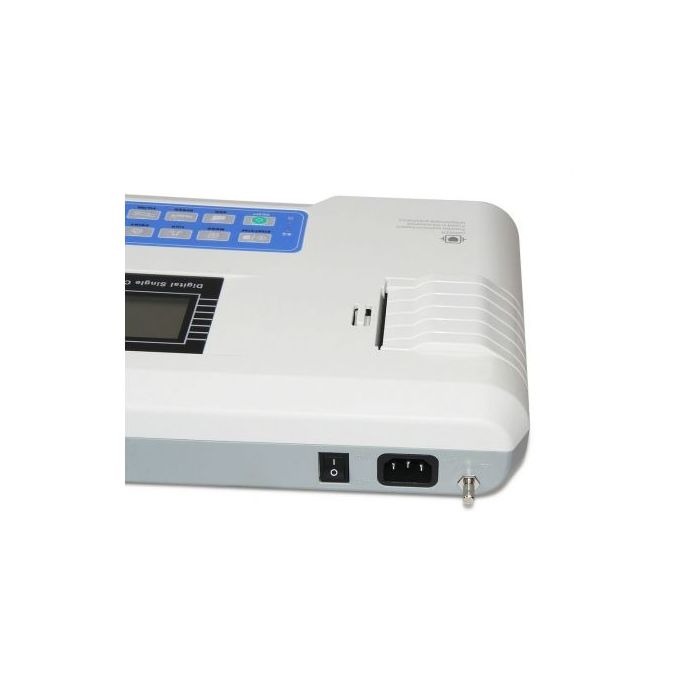

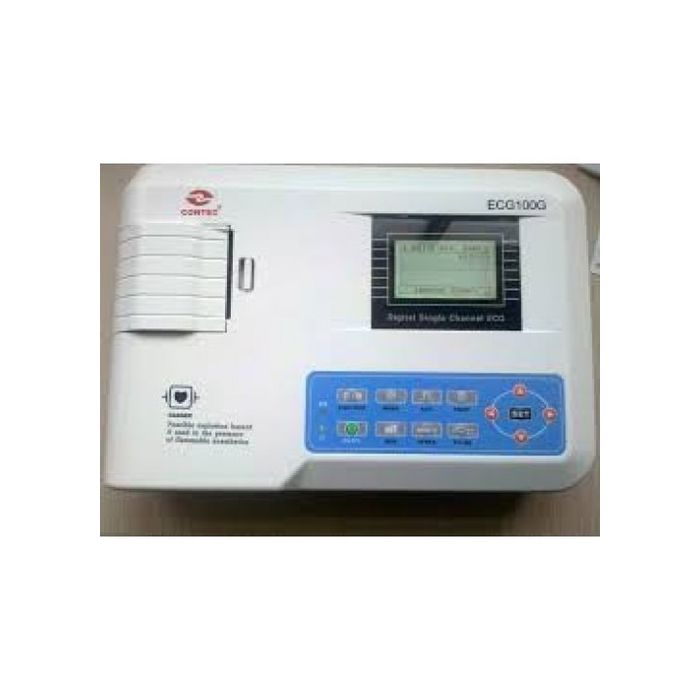

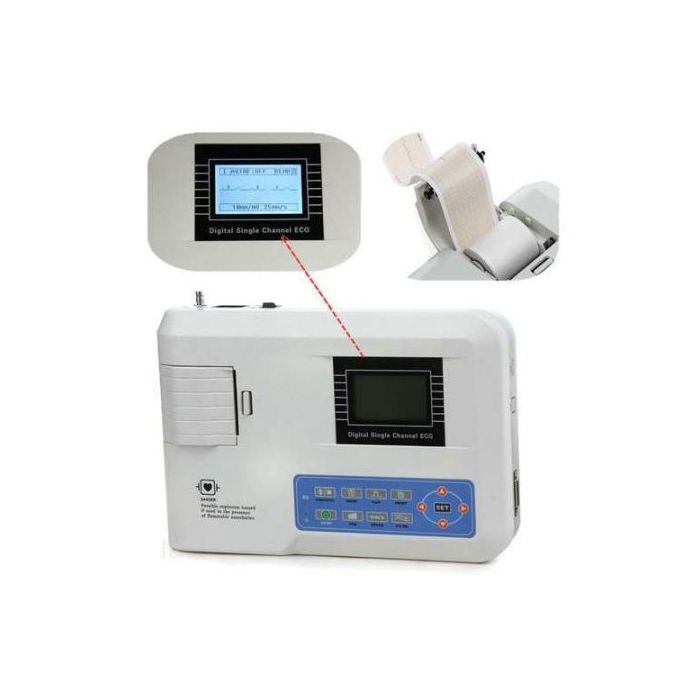

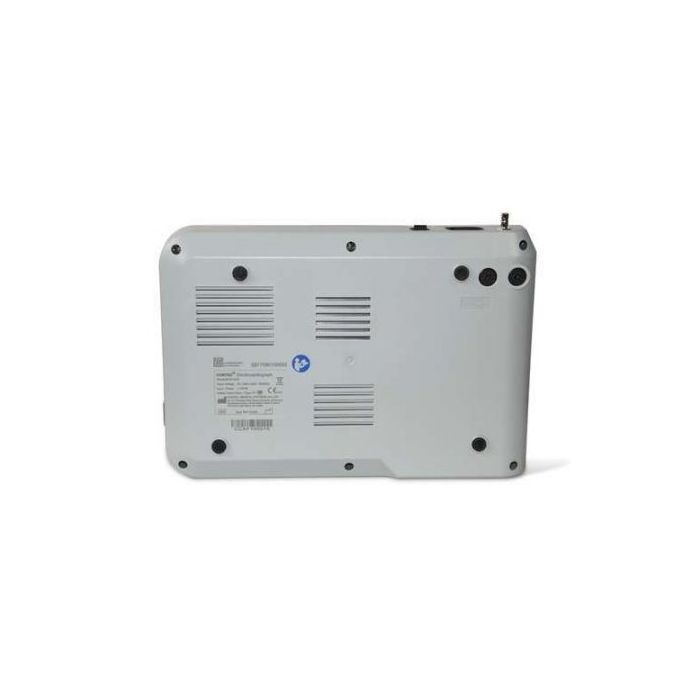

Contec Single Channel ECG Machine 100G

Product Specifications

• Output System: High-resolution thermal-array (8 dots/mm), it needs not be adjusted.
• Under automatic mode, just press the button once, it starts record procedure, which can enhance your work efficiency
• The figure of whole device is elegance and gliding
• According to the safe degree used under the condition with flammable anaesthesia gas mixed with air (or oxygen, nitrous oxide)
• Digital signal processor for effective inhibition of AC, EMG and DFT, receive the better ECG waveform.
• According to the working mode class, this device is nit suit to continuous work state

Acessories :-

• ECG Cable-1 No.
• Bulb Electrode-1 Set
• Clamp Electrode-1 Set
• Power Cable-1 No.
• Earthing Cable-1 No.
• User Mannual-1 No.

Product Details

• Country of origin : China
• Warranty :1 year
• Dimensions:-315 (mm)(l)*215(mm)(w)*77(mm)(h)
• Weight:-1.5kg
• Power Supply AC:-(100-240V) (50/60Hz)DC-7.24/2000mAh rechargeable lithium battery
• CMRR>60dB:- >100dB (add filter)
• Patient leak current:-< 10µA
• Calibration voltage:-1mVNoise level5, 10, 20 mm/mV input
• Circuit current :-< 50mA
• Screen Size:-2.7" FSTN Display
