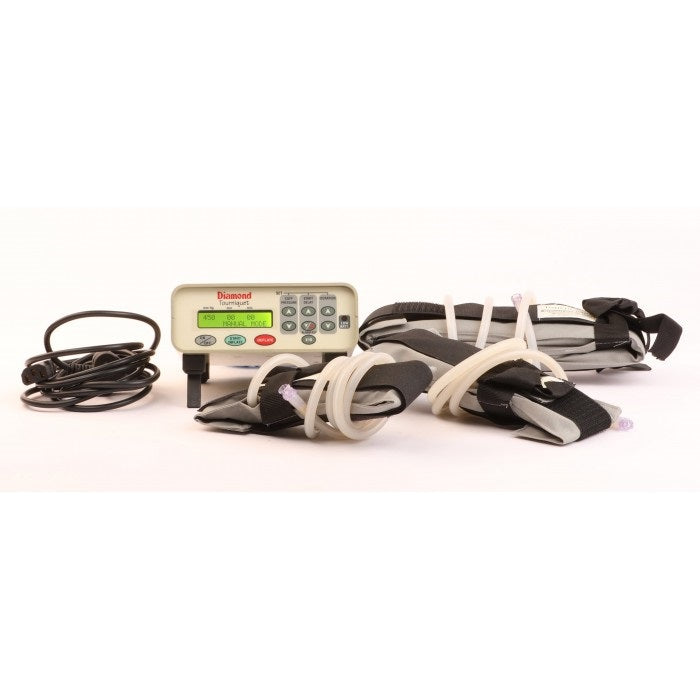

Diamond Model TRDG 511 Electronic Tourniquet Automatic for Single Cuff Operation with 3 Std. size Silicon Cuffs Auto-Clavable

• Silicon cuffs, autoclavable
• Microprocessor based system
• Battery operated, hence portable
• Sophisticated time-based alarms
• Trustworthy companion during orthopaedic surgery

Key Features

• The cuff pressure is always maintained to set value automatically.
• The set value of cuff pressure can be altered to any other desired value even while it is in working mode.
• Sophisticated ALARMS to give better warning messages.
• The last settings remain in the MEMORY when power is turned off.
• This Tourniquet is battery operated, hence PORTABLE, and can be used anytime, anywhere even for post-operation.
• Both start delay and duration can be changed during operation
• Manual override for cuff deflation
• Built in battery charging circuit to re-charge the battery immediately by just connecting the power cord.
• Cuff having long silicon tubing with positive locking connectors

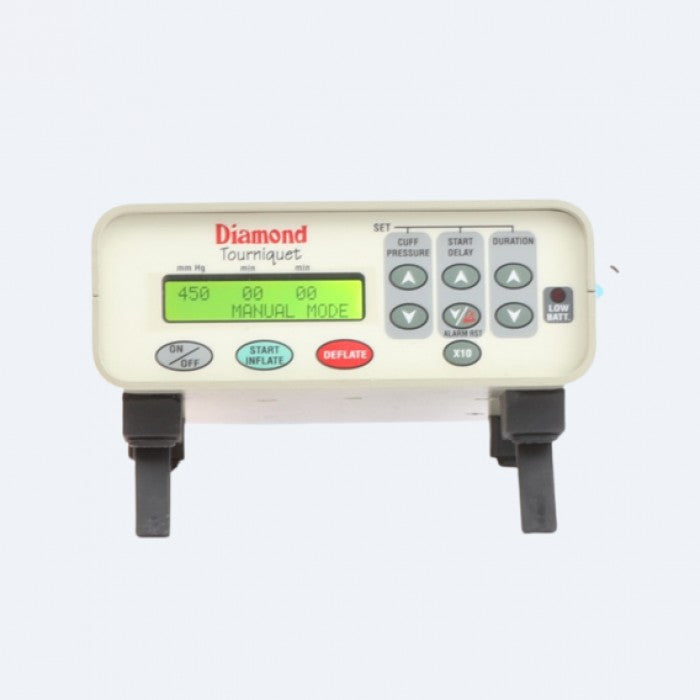

• Elegant soft keypad to dial settings with ease
• Cuff pressure setting 100 to 500 mmHg
• Compact & light-weight unit

Technical Specification

• Cuff pressure: 100 to 500 mm of Hg with 2 mm of Hg resolution
• Start Delay: 0 to 120 minutes setting
• On/Duration Time: 0 to 250 minutes setting
• Inflation : motorized pump
• Deflation: EMV automatic or manual override
• Acccuracy: +/- 3mm Hg (SET PRESSURE)
• Display: 16 x 2 backlit LCD
• Power: Re-chargeable battery (Built-in battery charging circuit)
• Operation Method: Micro-controller based control
• Elapsed Time Display: minutes : seconds
• Tourniquet Cuff Types: silicon autoclavable
• Cuff sizes: Lower limb – 7.5 x 74 cm
• Upper limb – 6 x 33 cm
• Upper limb – 4 x 28 cm
• Dimensions: 165(W) X 75(H) X 140(D) mm
