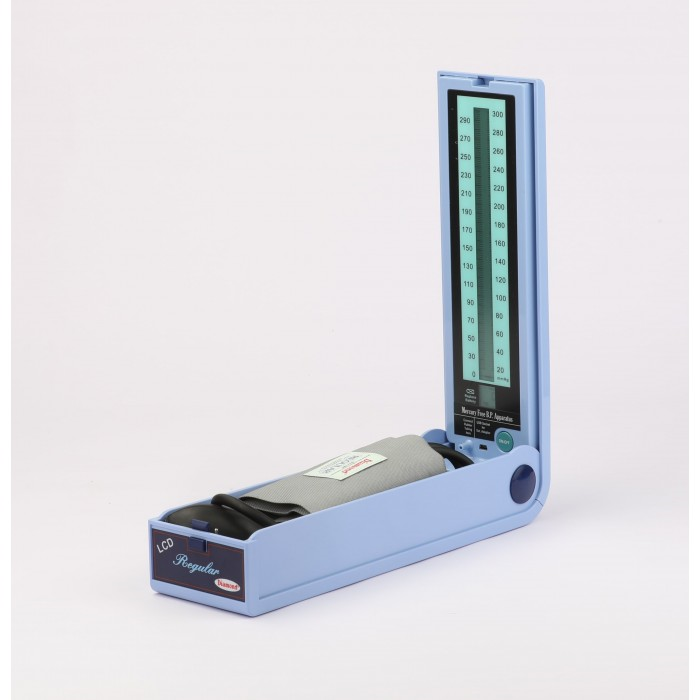

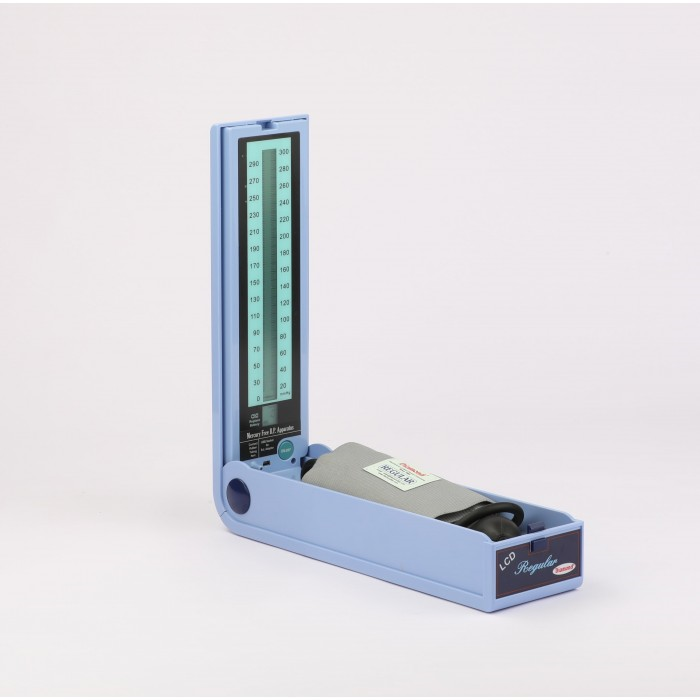

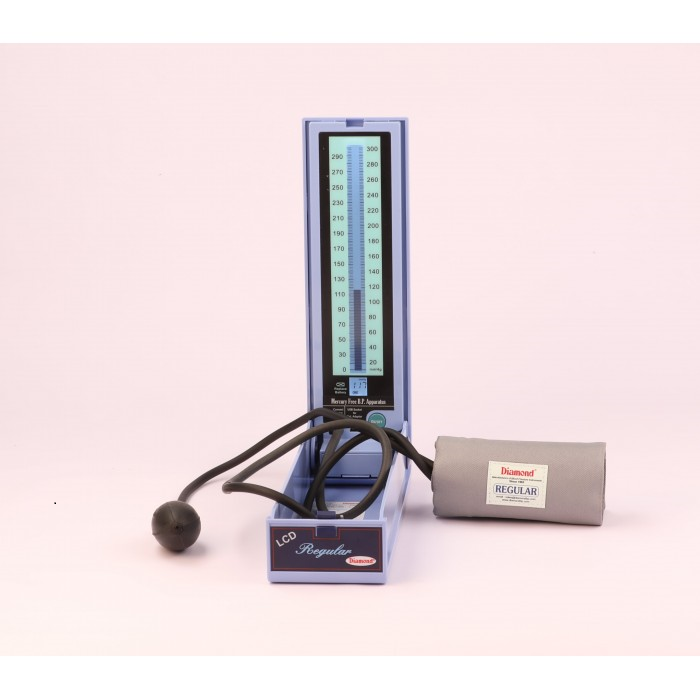

Diamond Blood Pressure Monitor LCD REGULAR (VELCRO CUFF, BATT) BPDG 034

• Digital Pressure Readout on LCD display
• Dual Power Operation (Battery cum USB Adaptor)
• New Sensor Technology
• Environment Friendly
• Good Calibration Stability
• Pulse rate display

Key Features

• Mercury Free
• Emulates the mercury column electronically
• Uses the Korotkoff Sound method for B.P. Measurement
• Calibrated with standard U Tube mercury Manometer
• Environment friendly
• Dual power operation
• Automatic ON & OFF switching of LCD backlite
• Very convenient for Clinics & Hospitals
• Model contains Main unit, Velcro cuff, Battery

Technical Specification

• Measurement Unit : mm Hg
• Resolution : 2mm Hg for LCD column and 1 mm Hg for numeric display
• Measurement method : By Auscultation with Stethoscope
• Pressure display range : 0 – 280 mm Hg for LCD column and 0-300 mm Hg for numeric display
• Accuracy : +/- 4mm Hg (Pressure) ; +/- 5% (Pulse)
• Cuff size: 14.5 cm x 51 cm
• Operating Environment: +10 to +40 degree centigrade
• Storage environment: -20 to +60 degree centigrade
• Pressurization: Manually by rubber bulb
• Deflation: Hand held pressure control valve
